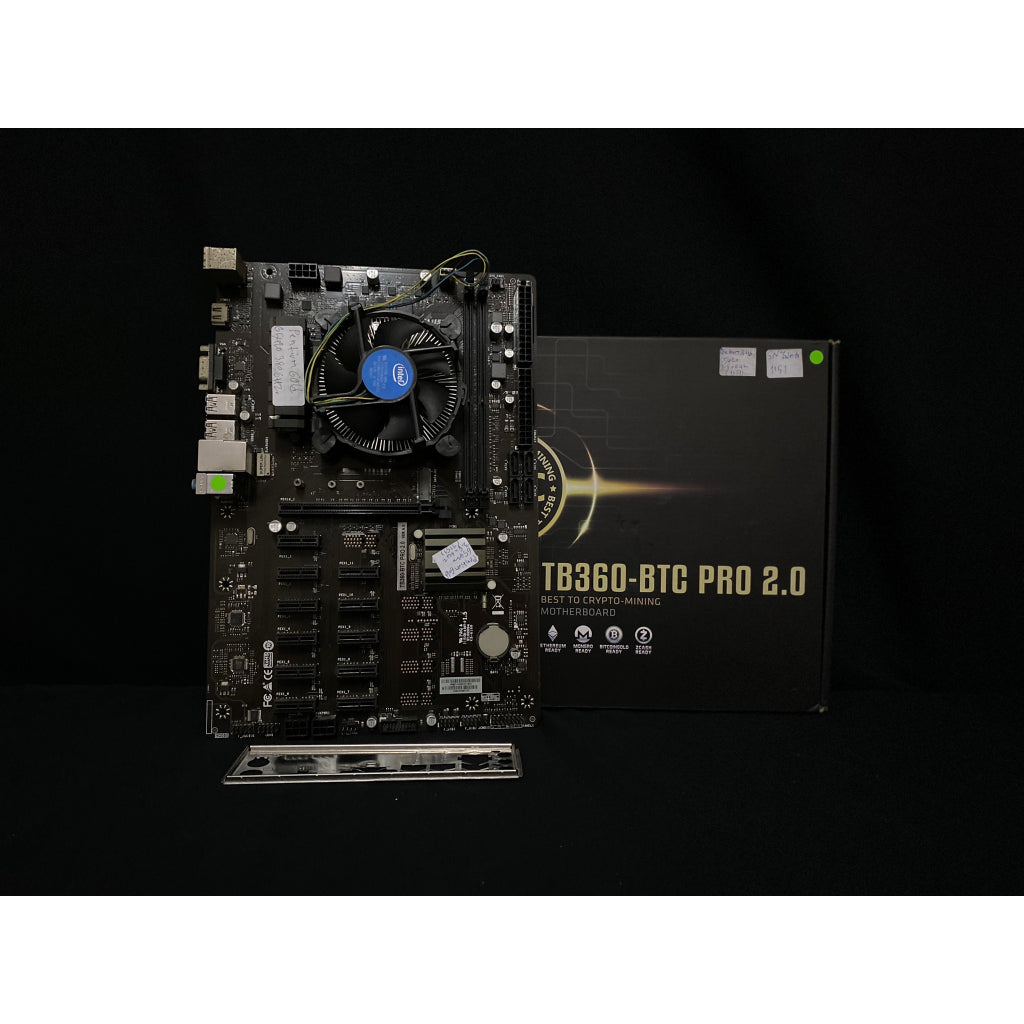

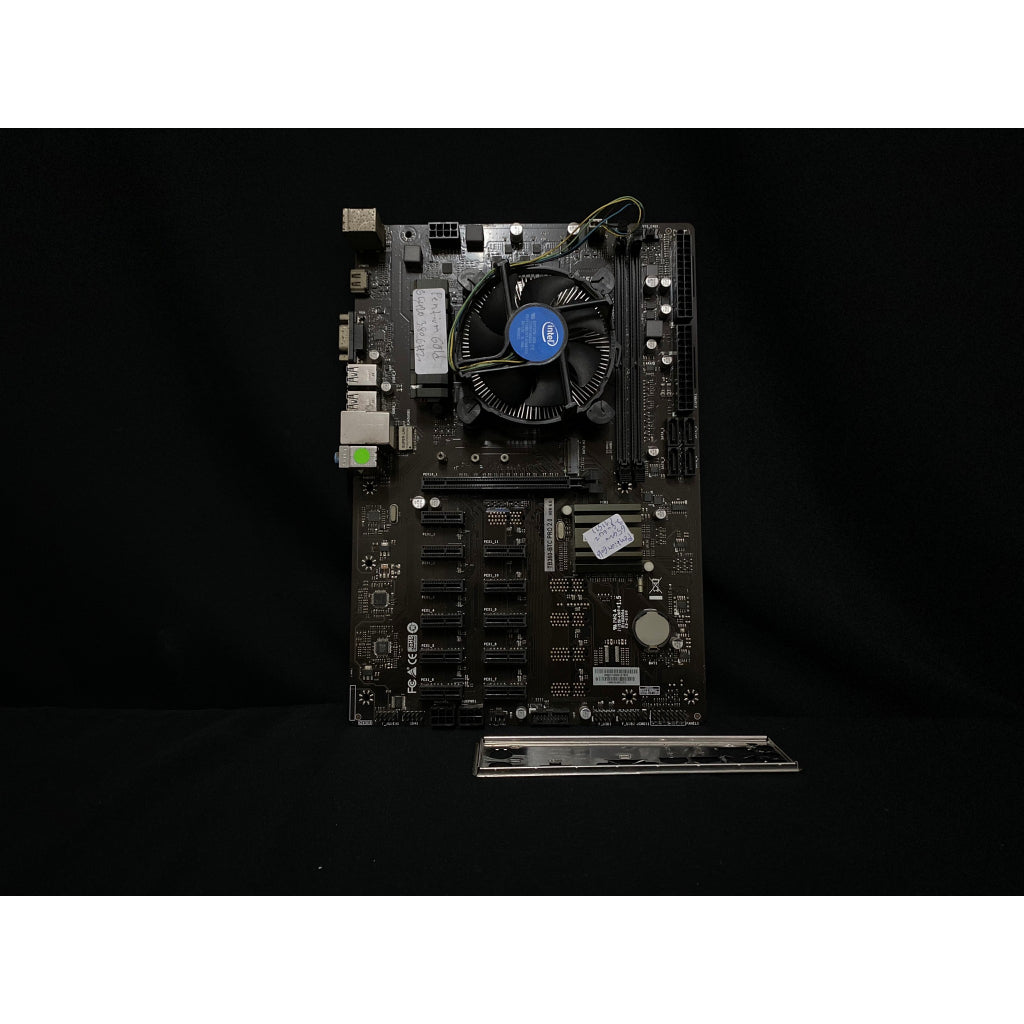

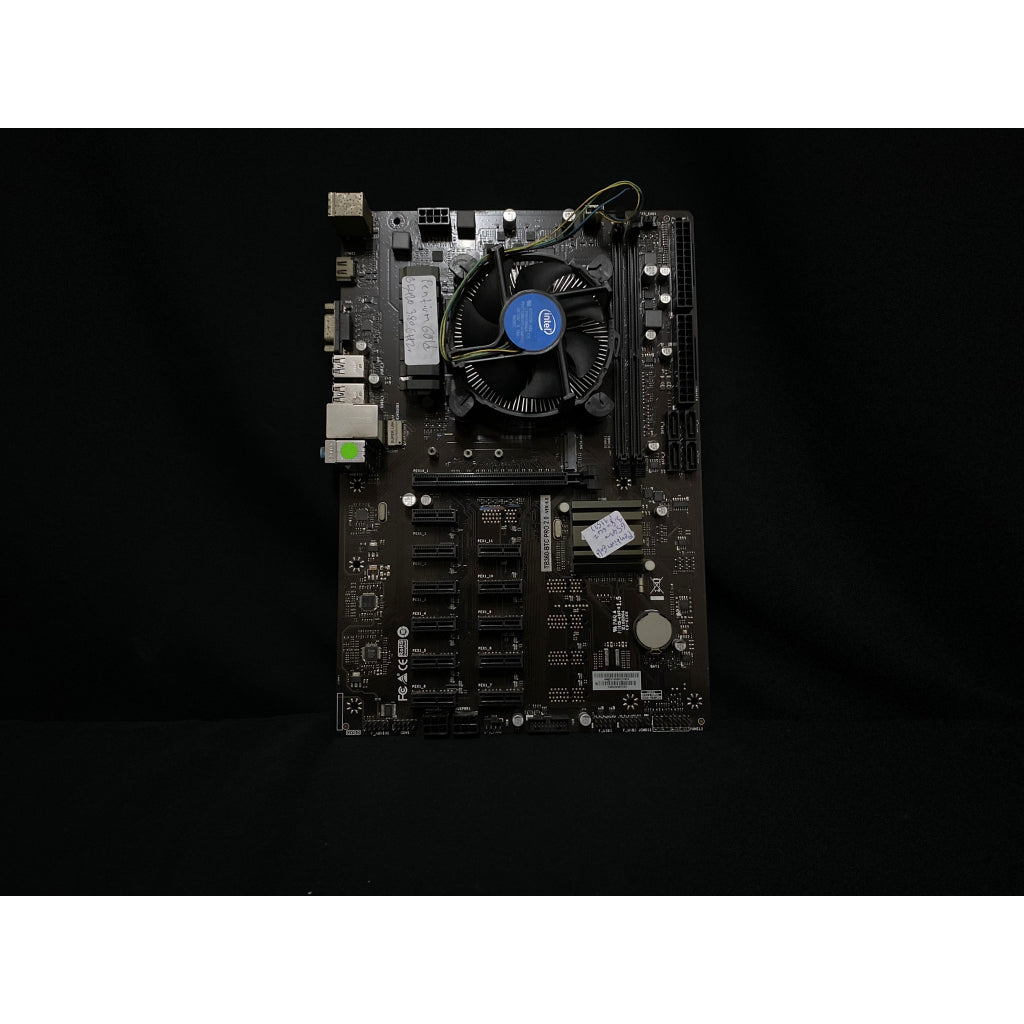

ชุดเซ็ตซีพียู+บอร์ด CPU (เลือกได้) + MB BIOSTAR TB360 BTC PRO 2.0 VER.6.0 SOCKET1151 ไม่มีเพทหลัง
สินค้ามือสอง 14 วัน MAXCOM

รายละเอียด G5400
Model Pentium Gold
Brand Intel
Socket1151 (8th Gen - Coffee Lake)
CPU Core / Thread 2/4
Frequency 3.7 GHz
Integrated GraphicsIntel UHD Graphics 610
------------------------------------------------------------------------------------------
รายละเอียด G5420
Model Intel Pentium G
Brand Intel
Socket1151 (9th Gen - Coffee Lake Refresh)
CPU Core / Thread 2/4
Frequency 3.80 GHz
Integrated GraphicsIntel UHD Graphics 610
-------------------------------------------------------------------------------------------
Model Core i3
Brand Intel
Socket 1151 (9th Gen - Coffee Lake Refresh)
CPU Core / Thread 4/4
Frequency 3.6 GHz
Turbo 4.2 GHz
Integrated GraphicsUHD Intel® 630
-------------------------------------------------------------------------------------------------
รายละเอียดเมนบอร์ด
Chipset Intel B360
CPU SUPPORT
9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
8th *Generation Intel® Core™ Processor Family only support 300-Series.
MEMORY
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
4 x SATA III Connectors (6GB/s)
1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD
LAN Realtek RTL8111H – 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODEC Realtek ALC887 8-Channel HD Audio
USB
6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
11 x PCI-E 3.0 x1 Slots
*Maximum VGA cards mining support are depending on VGA Driver or mining software.

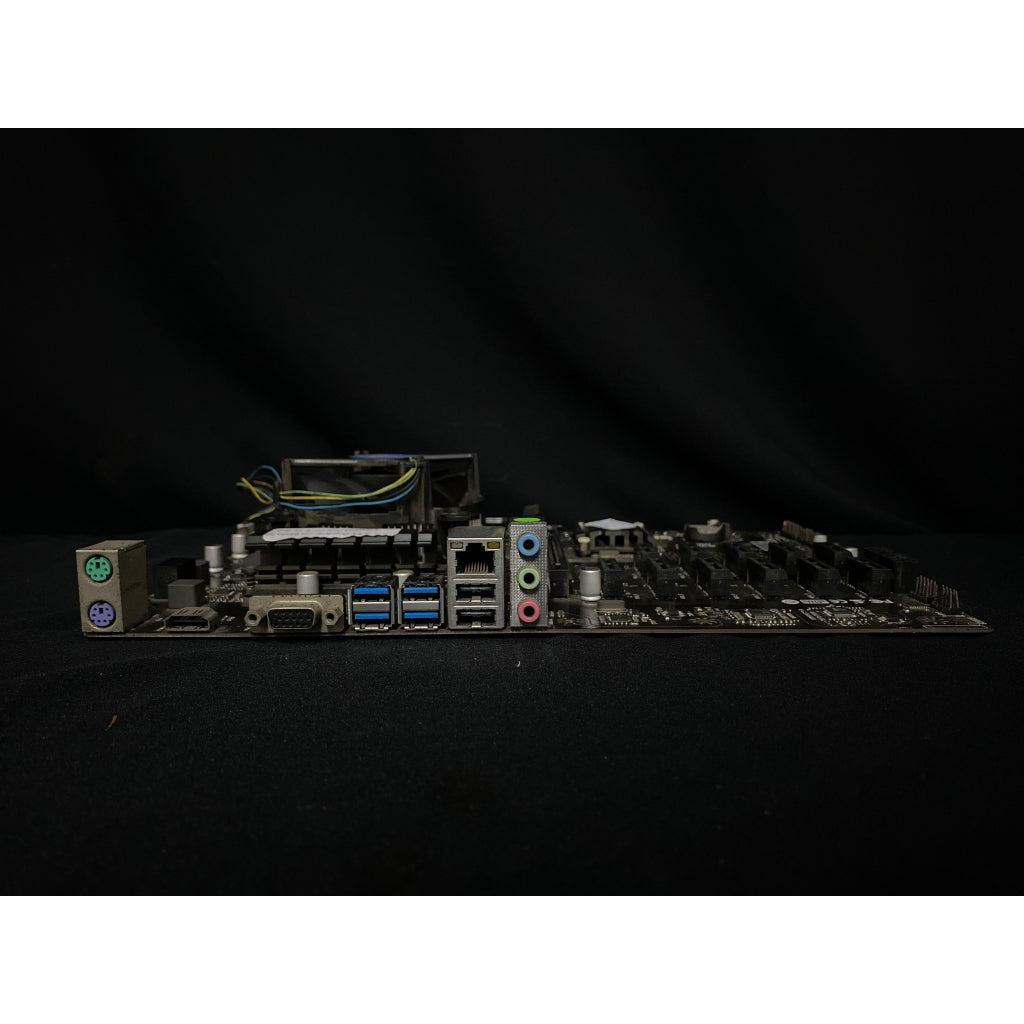

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
DIMENSION ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )
OS SUPPORT Supports Windows 10(64bit)
Linux ethOS Mining OS
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES PCI-E Slot Detection BIOS Boot Screen
