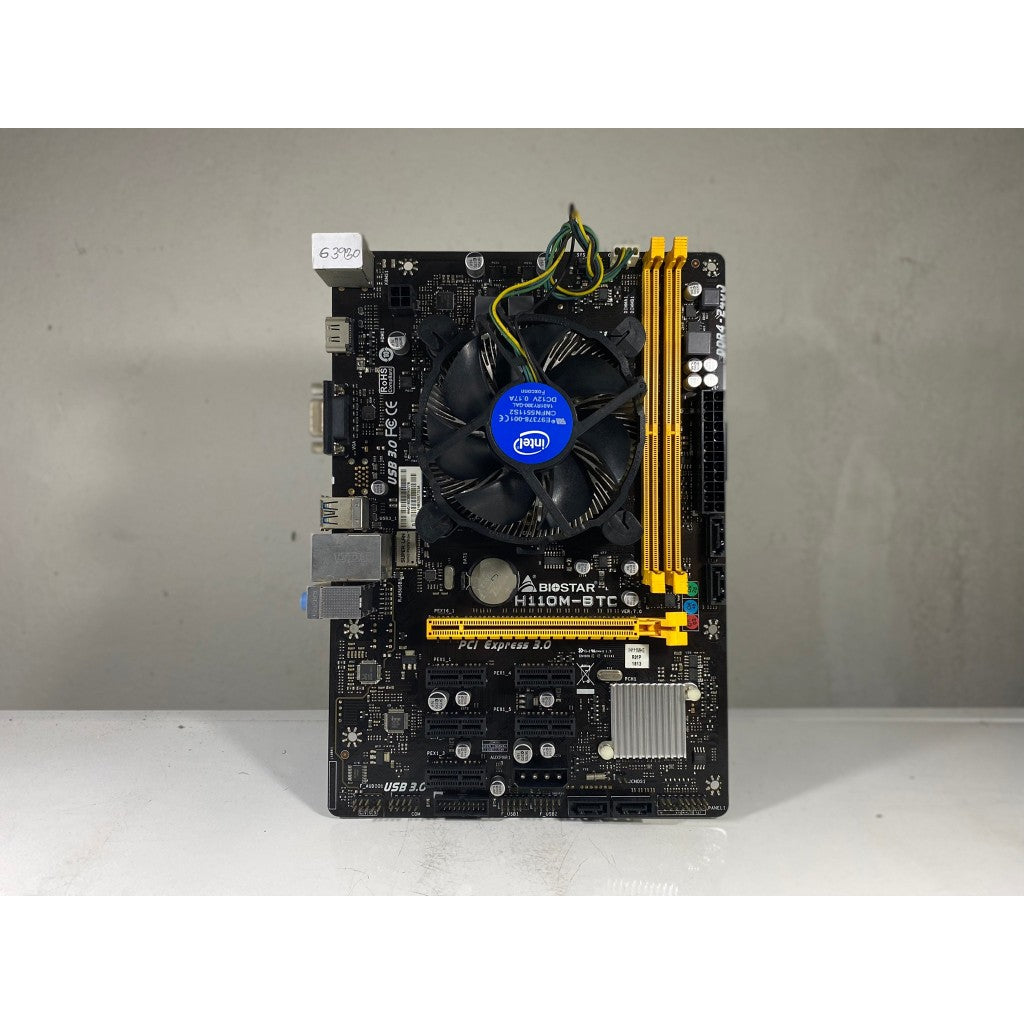

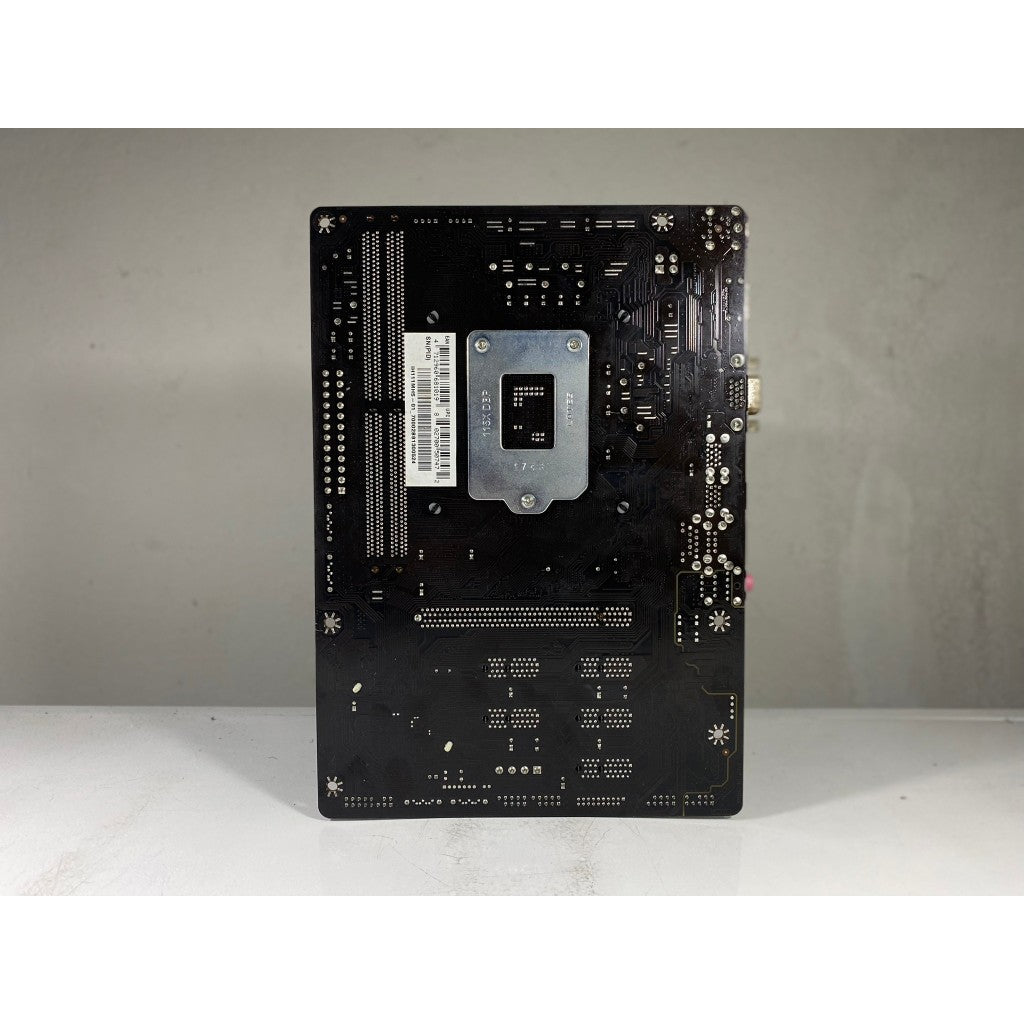

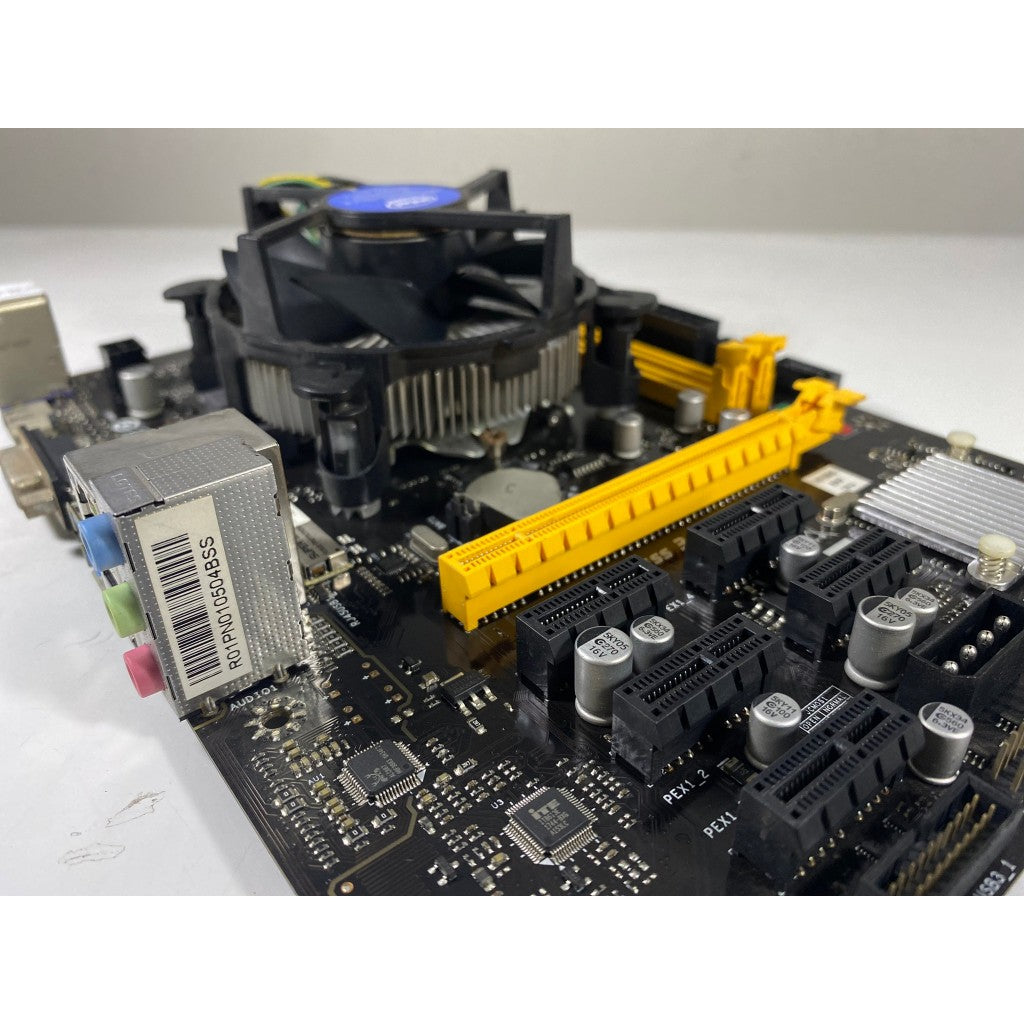

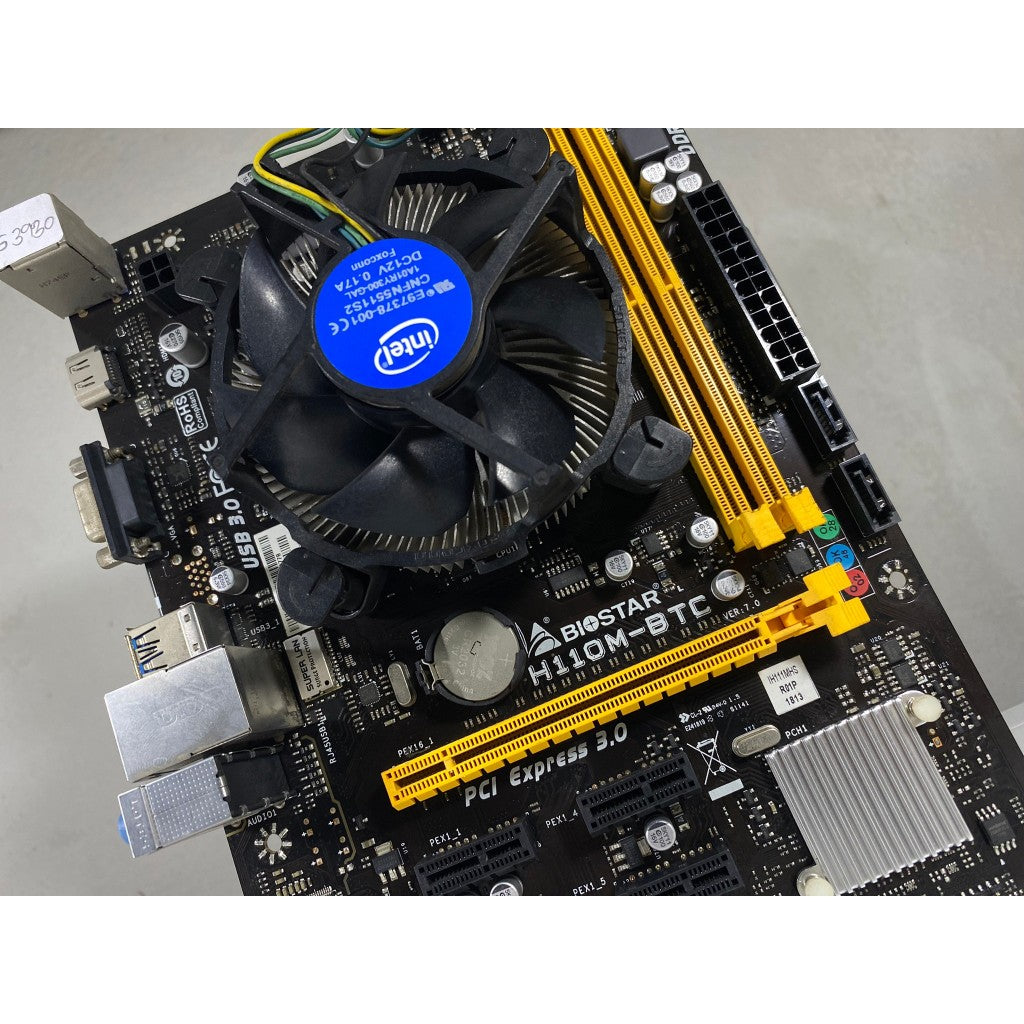

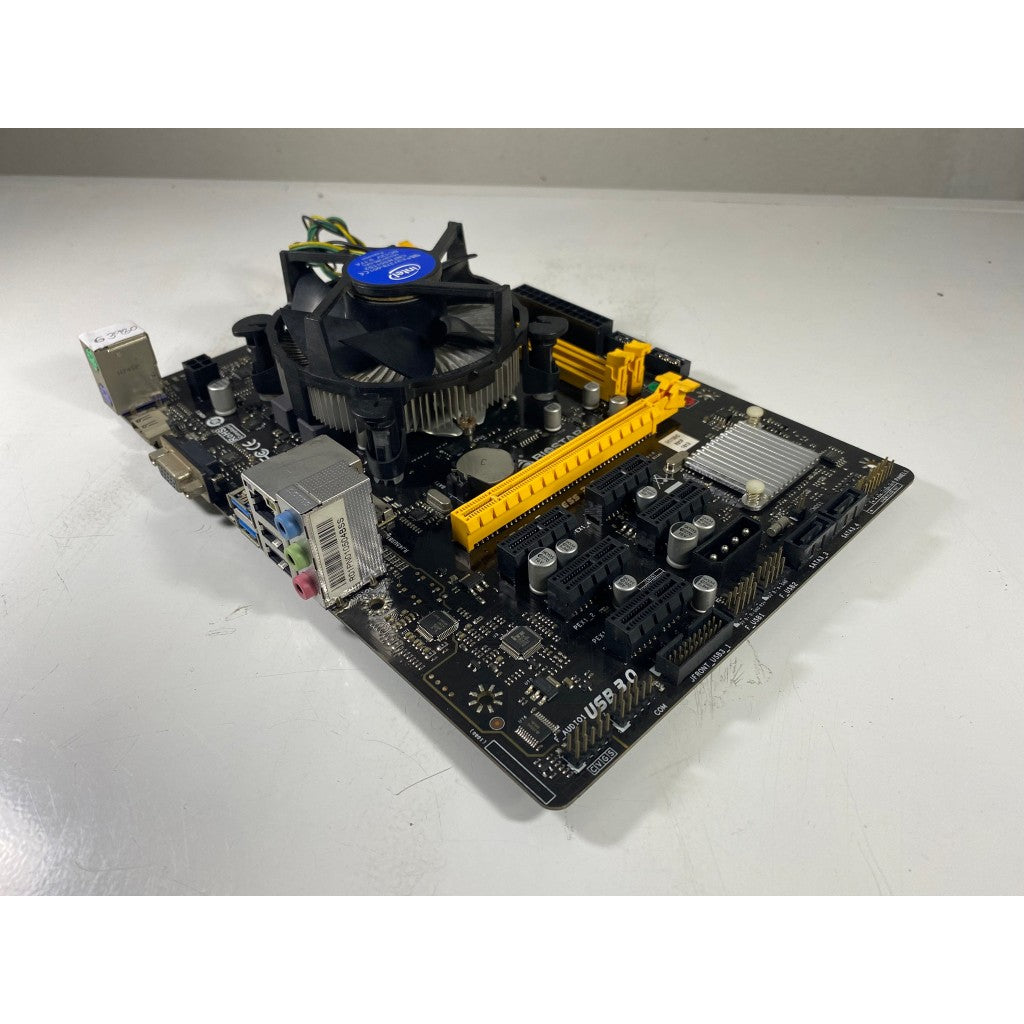

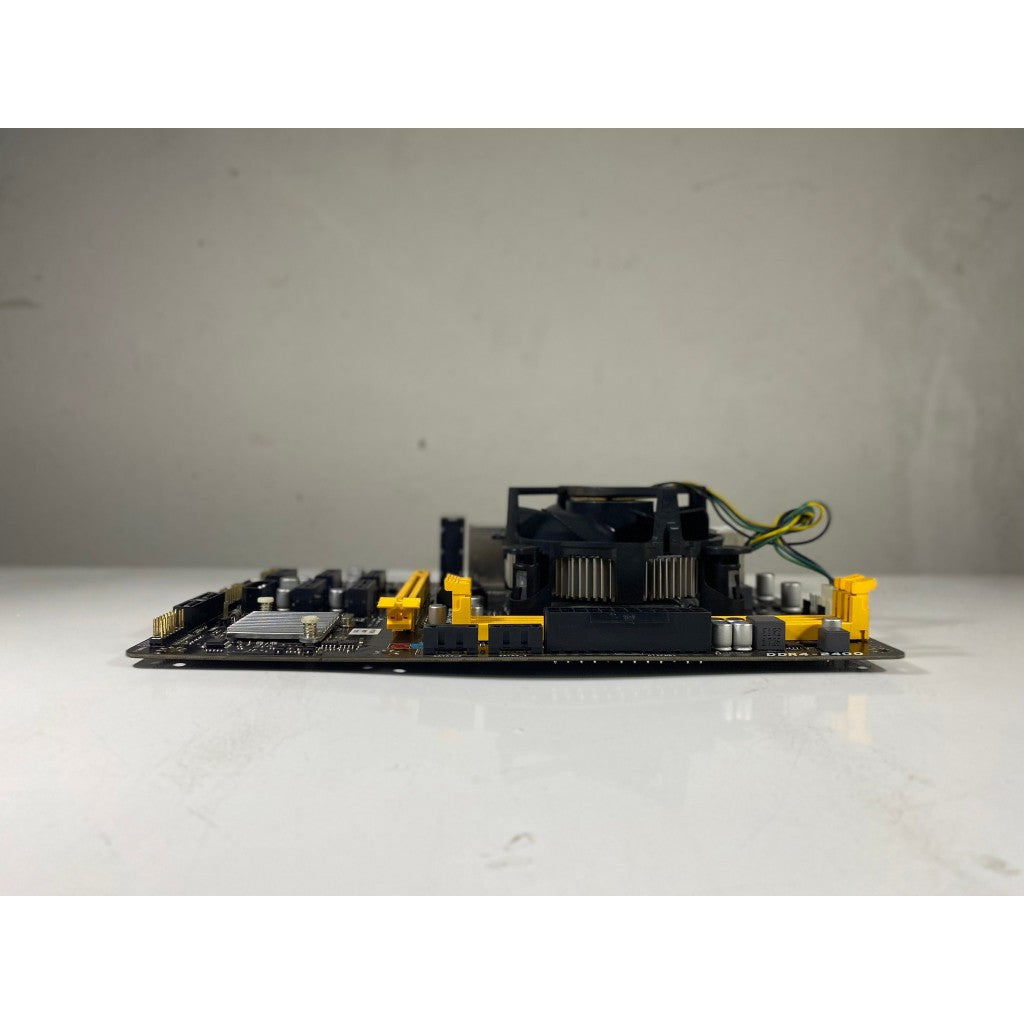

ชุดเซ็ตซีพียู+บอร์ด CPU PENTIME (เลือกได้) + BIOSTAR H110M-BTC SOCKET1151 ไม่มีเพทหลัง สินค้ามือสอง
มีประกันร้านให้ 14 วัน

รายละเอียดสินค้า
Brand Biostar
Model H110M-BTC
CPU Support 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91Watt
Socket LGA 1151
Chipset Intel H110
Memory Support Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2400 for 7th Generation Intel® Core™ Processor Family
Memory Type DDR4
Memory Bus 2400 / 2133 / 1866 MHz
Memory Slot 2 Slots
Graphics By CPU model
Supports DX12
Supports HDCP
Audio Realtek ALC887 8-Channel HD Audio
Expansion Slots 1 x PCI-E x16 3.0 Slot
5 x PCI-E x1 2.0 Slot
Storage 4 x SATA3 Connector
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
Internal I/O Connectors 1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
1 x PCI-E 12V 4Pin Connector(Must be installed when using for mining.)

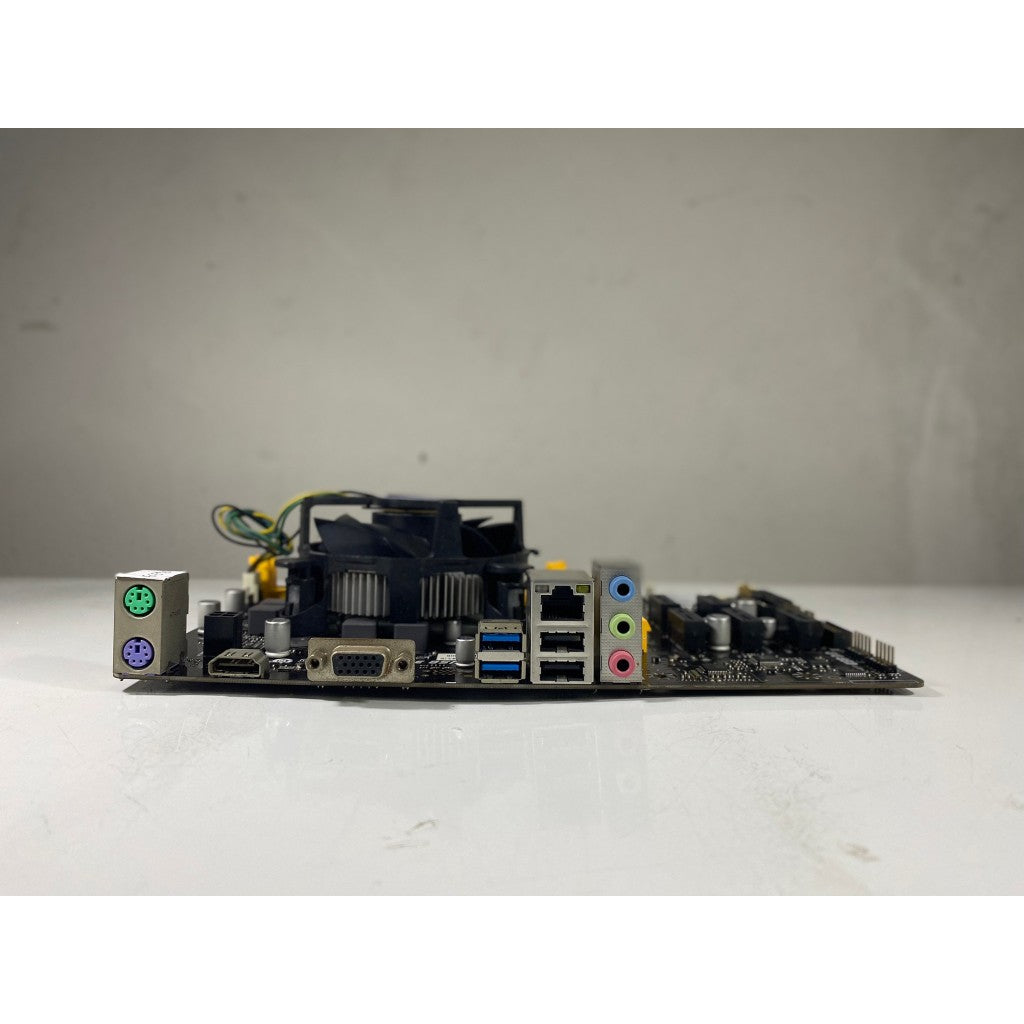

Back Panel Connectors 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
LAN Realtek RTL8111H - 10/100/1000 Controller
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 17.1cm ( W x L )
H/W Monitoring CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
Software Features BullGuard
Smart Speed LAN(Windows 7/ 8.1 only)
Operating System Support Support Windows 10(x64) for Intel 7th Generation Processor
Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
---------------------------------------------------------------------------------------------------------------
รายละเอียด CPU G3930
Model Celeron
Brand Intel
Socket 1151 (7th Gen - Kaby Lake)
CPU Core / Thread2/2
Frequency 2.9 GHz
Integrated GraphicsIntel HD Graphics 610
---------------------------------------------------------------------------------------------------------------
รายละเอียด CPU G4400
Model Intel Pentium G
Brand Intel
Socket 1151 (6th Gen - Skylake)
CPU Core / Thread 2/2
Frequency 3.3 GHz
Integrated GraphicsIntel HD Graphics 510
