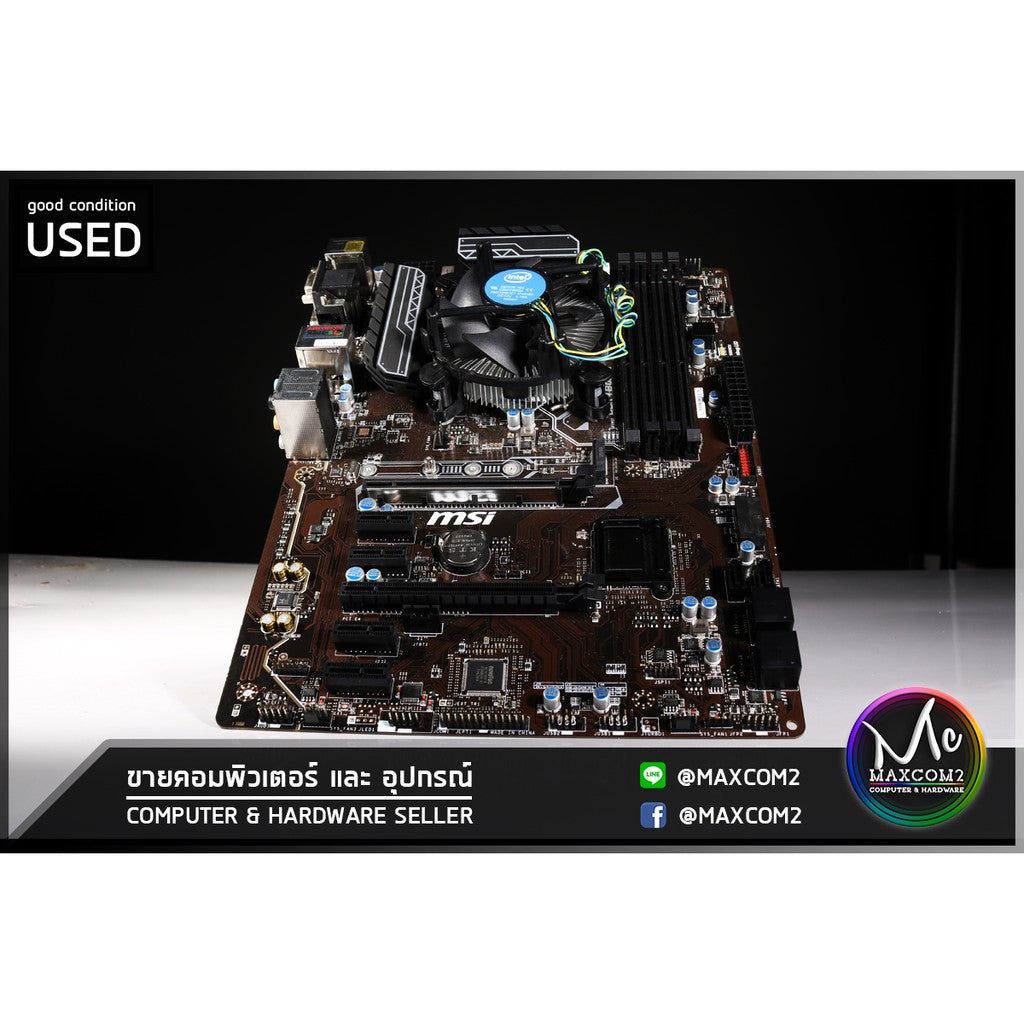

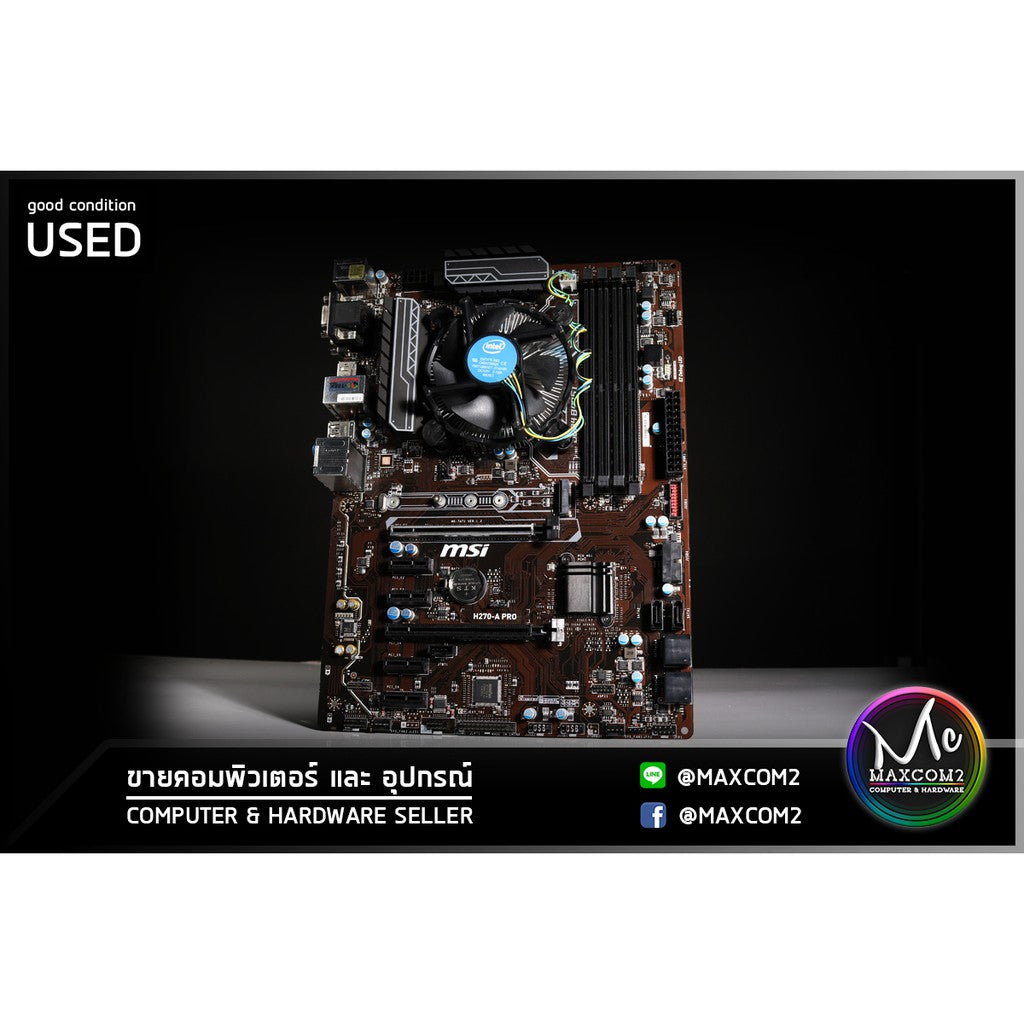

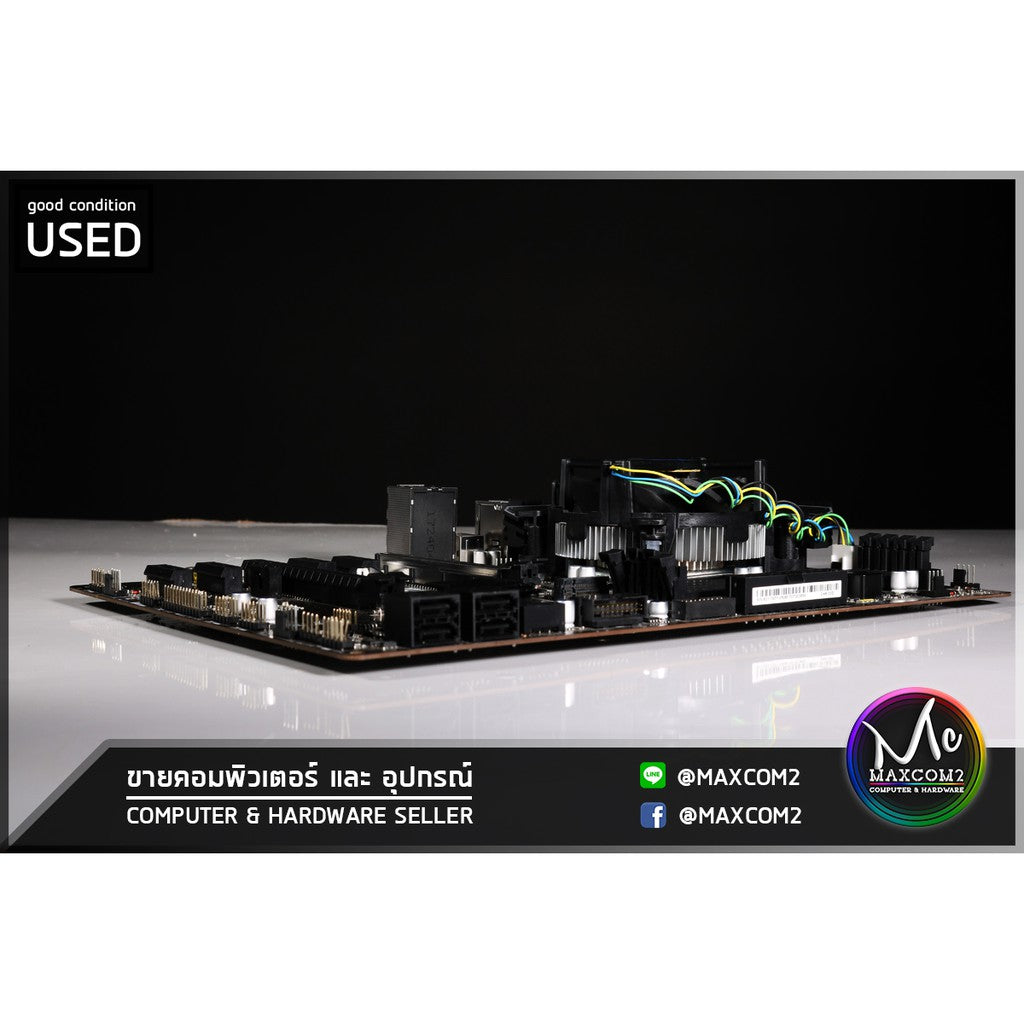

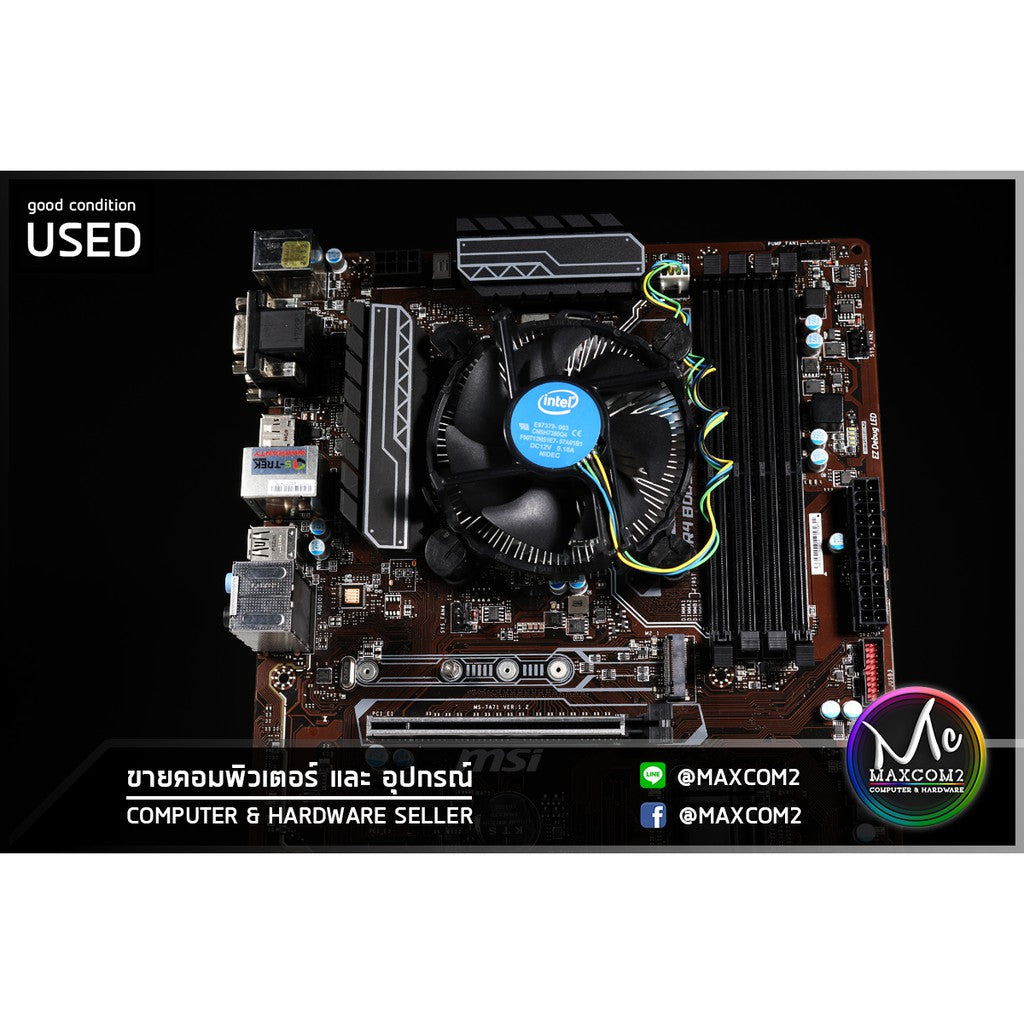

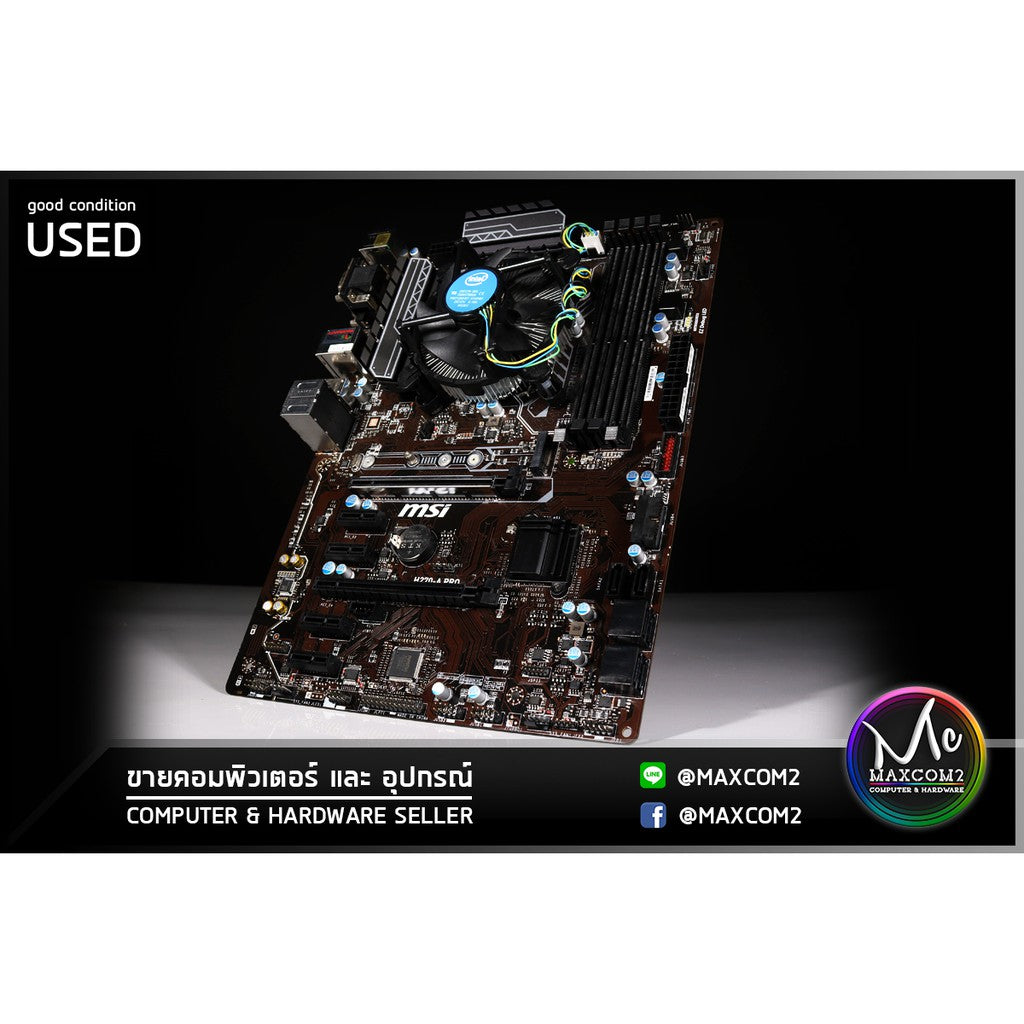

ซีพียูพร้อมเมนบอร์ด : CPU INTEL I3 6100 + MB MSI H270-A PRO ไม่มีเพทหลัง ไม่มีกล่อง สินค้ามือสอง
มีประกันร้านให้ 14 วัน


รายละเอียดสินค้า CPU
Brand Intel
Model Core i3 - 6100
Series i3
Processors number 6100
Generation 6th
Socket 1151
# of Cores 2
# of Threads 4
Frequency 3.7 GHz
Turbo Frequency N/A
Cache 3 MB Intel Smart Cache
Integrated Graphics Intel HD Graphics 530
CPU Cooler Yes
Package Dimension (W x D x H) : 10.00 x 12.00 x 8.00 cm
Gross Weight 0.25 KG
Volume 960.00 cm3
---------------------------------------------------------------------------------------------------
รายละเอียดสินค้า เมนบอร์ด
Brand MSI
Model H270-A PRO
CPU Support Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Socket 1151
Chipset Intel H270
Memory Support
- 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 2400/ 2133 MHz
- 6th Gen processors support DDR4 2133 MHz
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
Memory Type DDR4
Memory Bus 2400 / 2133 MHz
Memory Slot 4 Slots
Graphics
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,
- 1920x1200@60Hz
Multi Graphic Support Supports 2-Way AMD® CrossFire™ Technology
Audio
- Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
Expansion Slots
- 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
- 4 x PCIe 3.0 x1 slots
Storage Intel® H270 Chipset :
6 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready
Supports Intel® Smart Response Technology for Intel Core™ processors
USB
- Intel® H270 Chipset :
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x Clear CMOS jumper

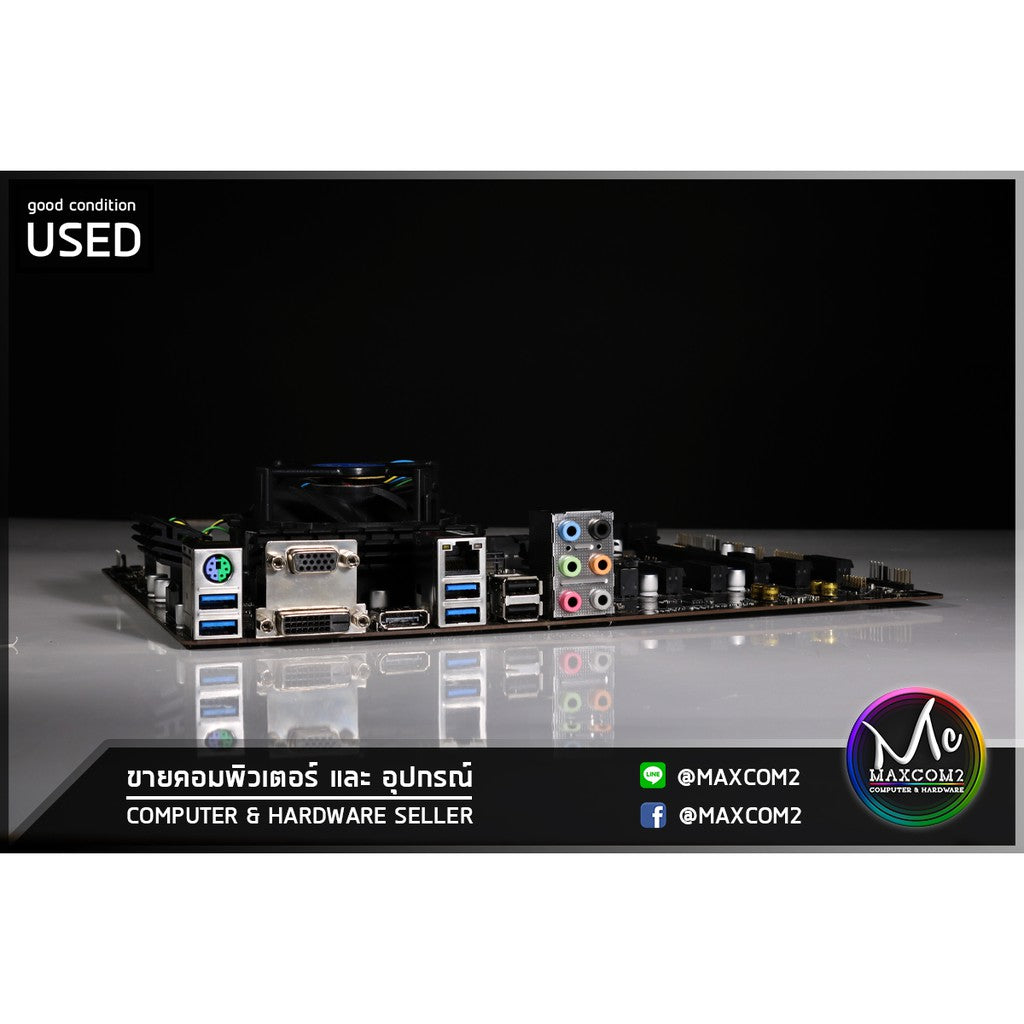

Back Panel Connectors
1 x PS/2 mouse & keyboard combo port
4 x USB 3.1 Gen1 Type-A ports
1 x VGA port
1 x DVI-D port
1 x DisplayPort
1 x LAN (RJ45) port
2 x USB 2.0 ports
6 x audio jacks
LAN 1 x Realtek® RTL8111H Gigabit LAN controller
Form Factor 12.0 in. x 8.9 in. (30.5 cm x 22.5 cm)
ATX Form Factor
