ซีพียูพร้อมเมนบอร์ด : CPU เลือกได้ + MB GIGABYTE GA B250 FINTECH มีเพทหลัง สินค้ามือสอง
มีประกันร้านให้ 14 วัน

รายละเอียด CPU
CPU G4400
Brand Intel
Model Pentium G4400
Processors number G4400
Socket 1151
# of Cores 2
# of Threads 2
Frequency 3.3 GHz
Cache 3 MB Intel Smart Cache
Integrated Graphics Intel HD Graphics 510
CPU Cooler Yes
Package Dimension (W x D x H) : 10.10 x 8.00 x 11.30 cm
Gross Weight 0.26 KG
Volume 913.04 cm3

CPU G4560
Brand Intel
Model Pentium G4560
Series Pentium
Processors number G4560
Socket 1151
# of Cores 2
# of Threads 4
Frequency 3.5 GHz
Cache 3 MB Intel Smart Cach
Integrated Graphics Intel HD Graphics 610
CPU Cooler Yes
Package Dimension (W x D x H) : 10.10 x 8.00 x 11.30 cm
Gross Weight 0.26 KG
Volume 913.04 cm3

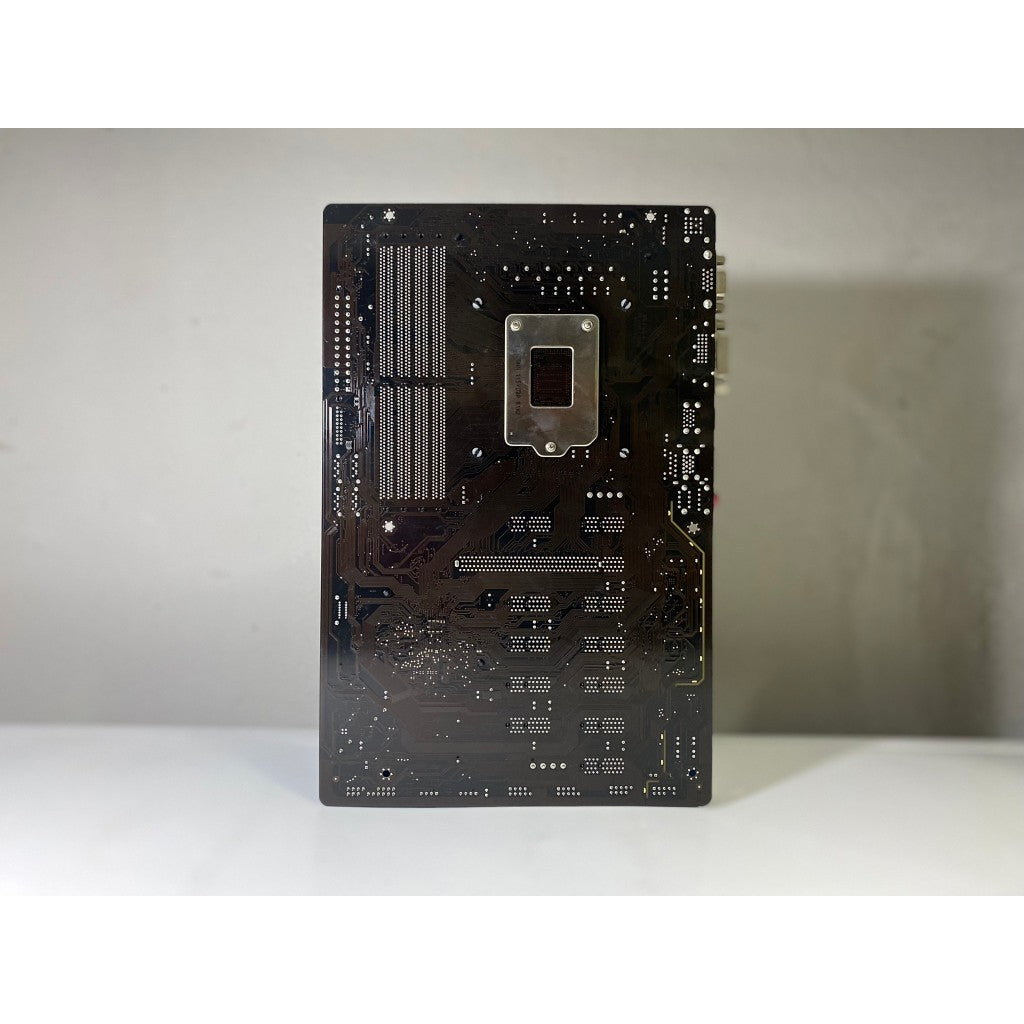

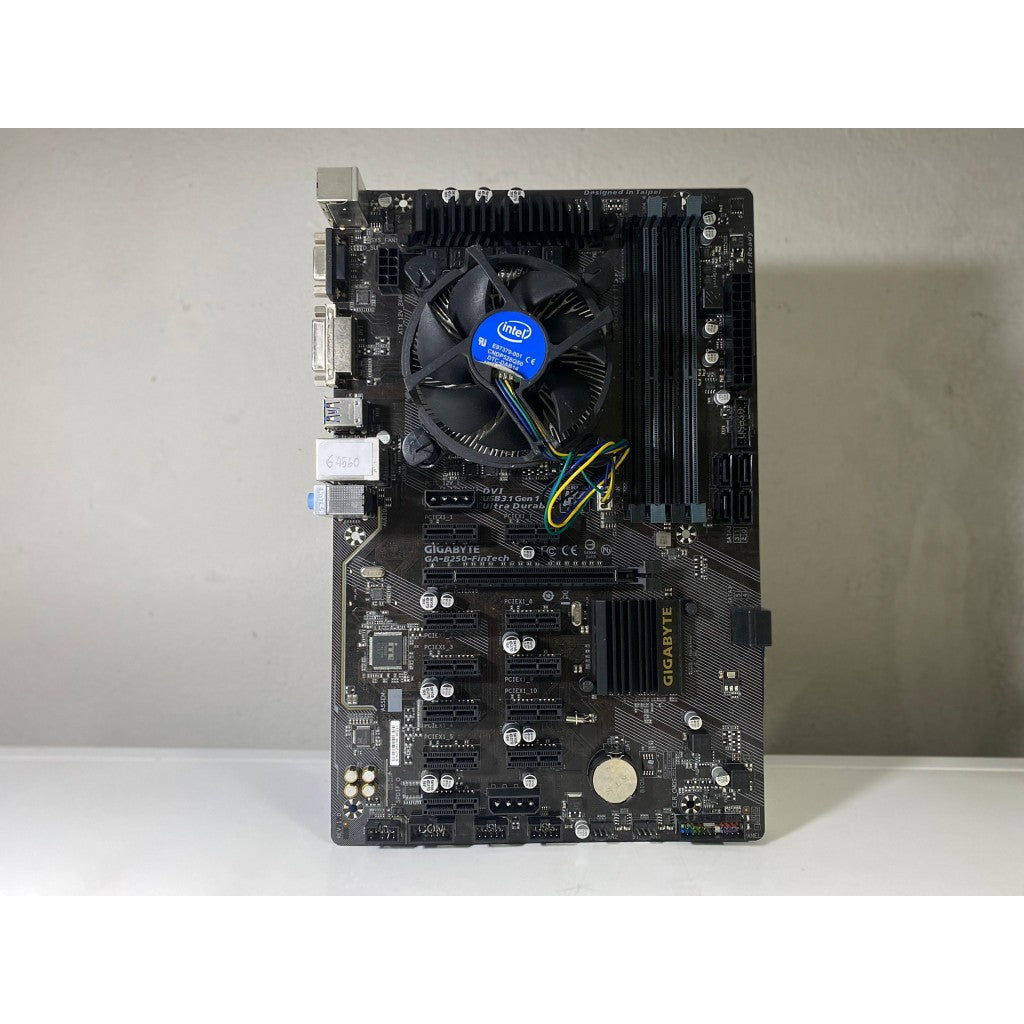

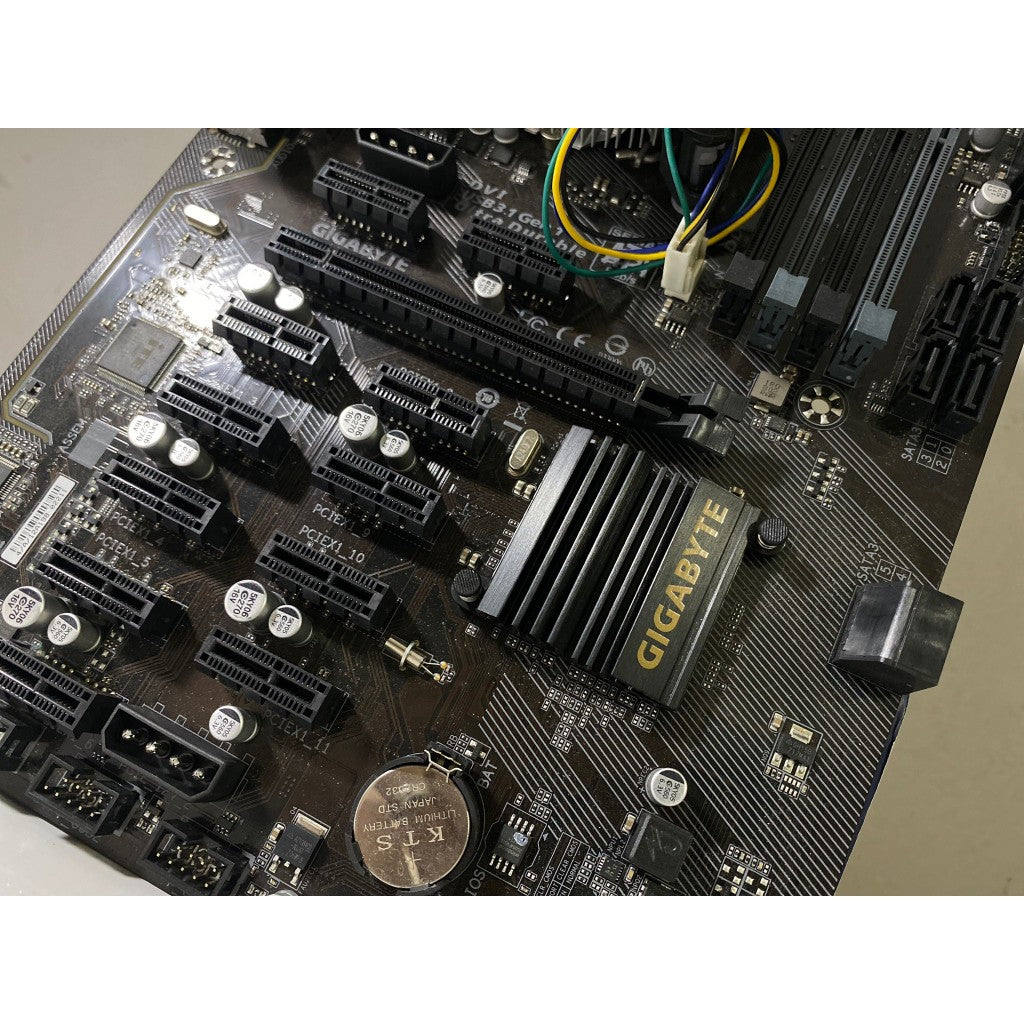

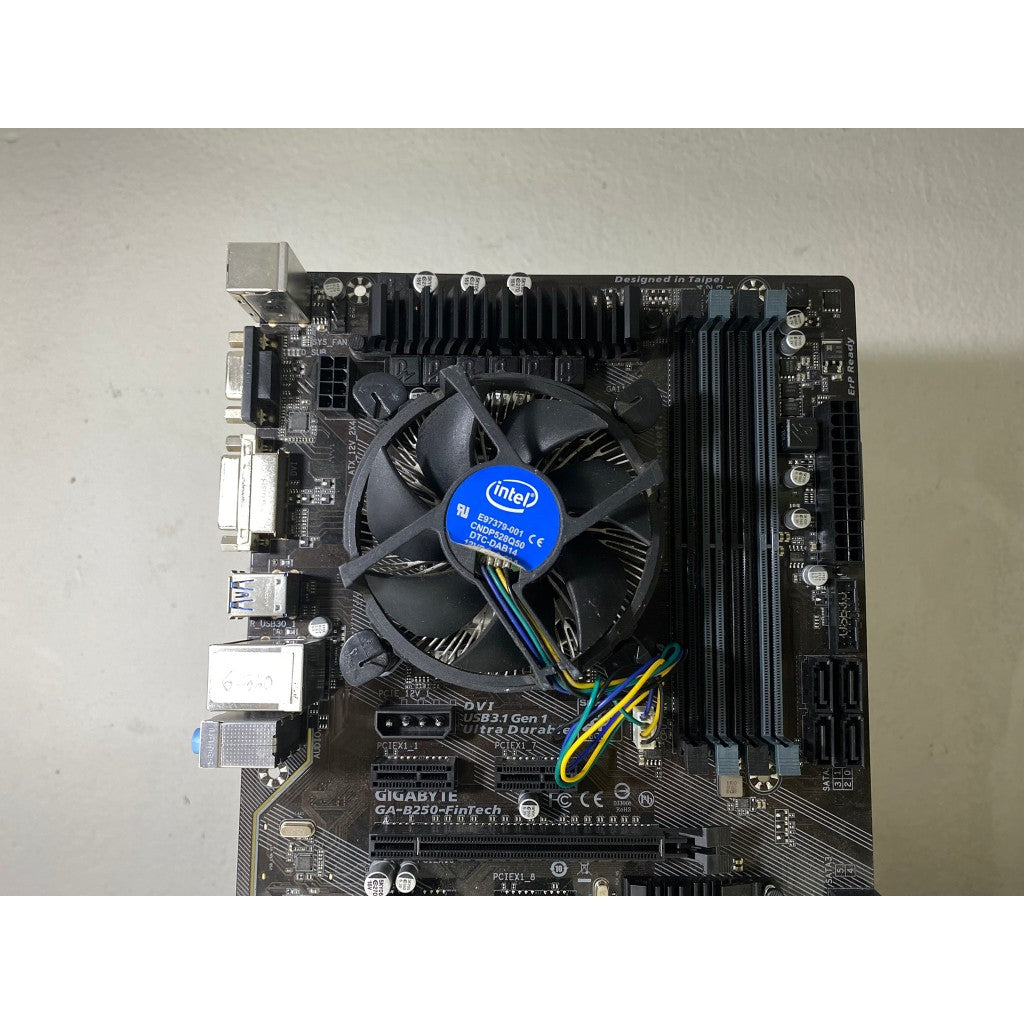

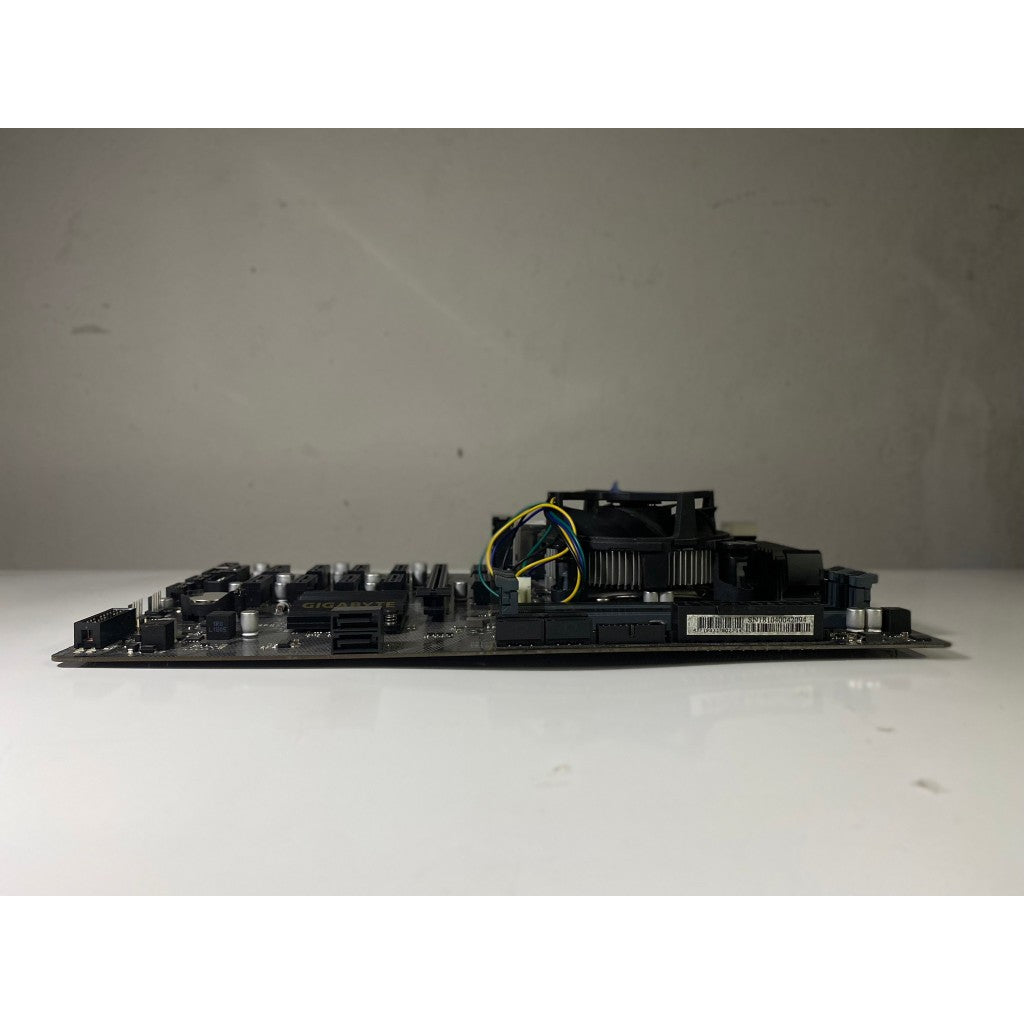

รายละเอียด เมนบอร์ด
Brand GIGABYTE
Model GA-B250-FinTech
CPU Support Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Socket 1151
Chipset Intel B250
Memory Support 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th Generation processor.
Memory Type DDR4
Memory Bus 2400 / 2133 MHz
Memory Slot 4 Slots
Graphics
Integrated Graphics Processor- Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

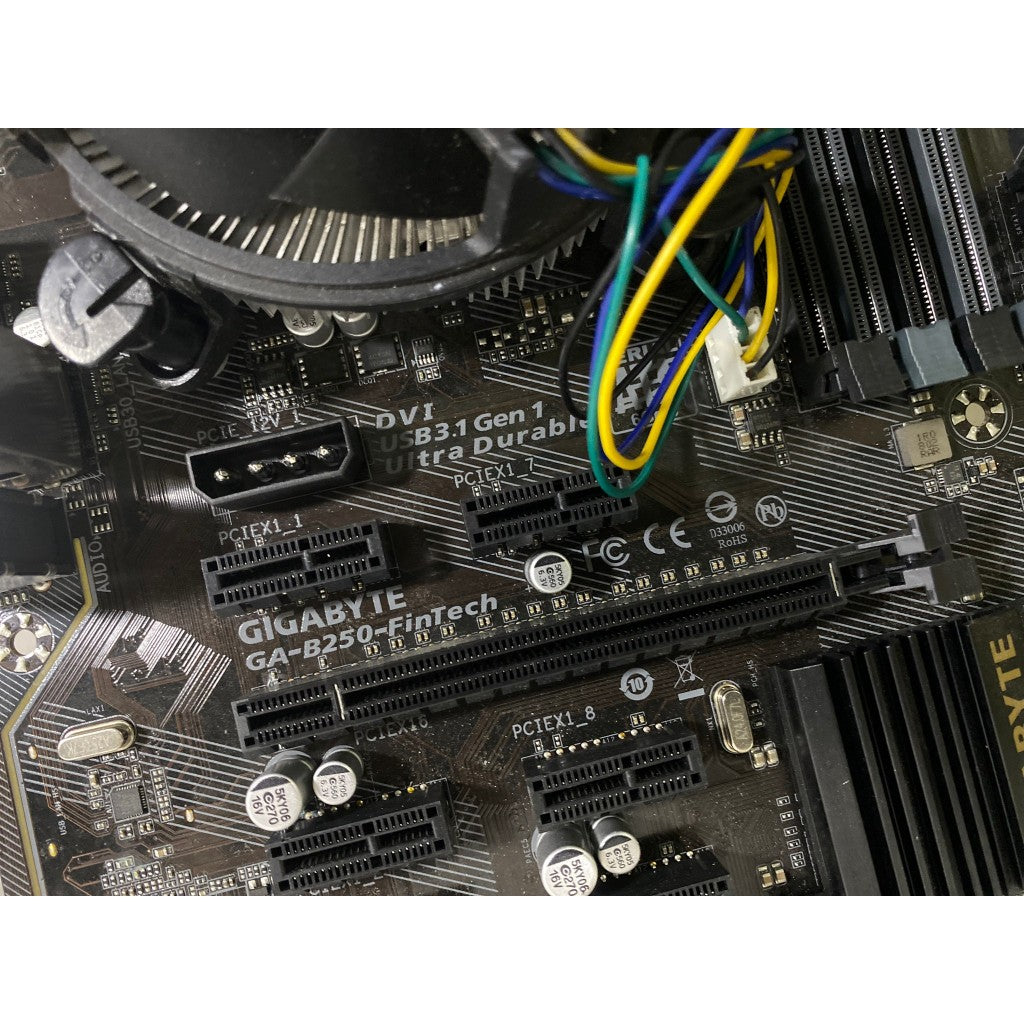

Expansion Slots
1 x PCI Express x16 slot, running at x16
11 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage 6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

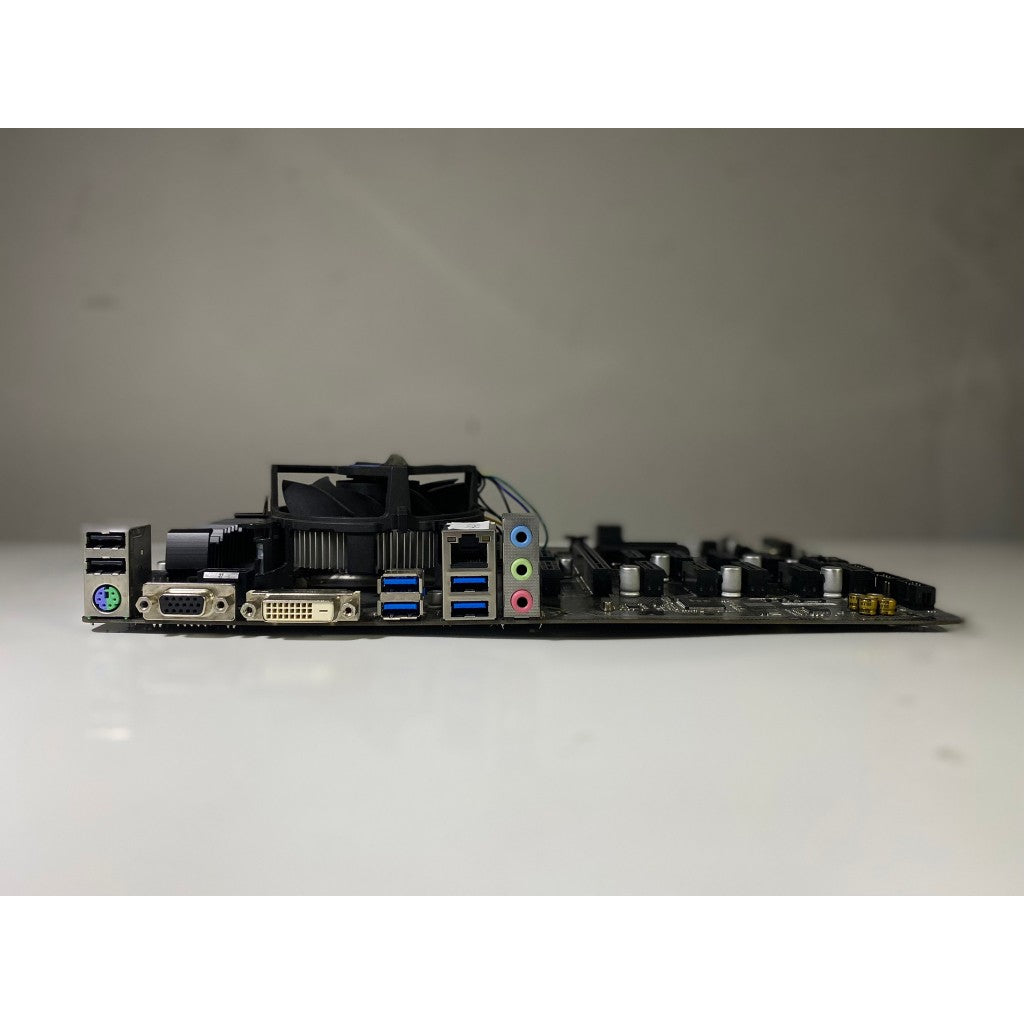

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Form Factor Micro ATX Form Factor; 30.5cm x 20.0cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software Features Norton® Internet Security (OEM version) cFosSpeed
Operating System Support Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
